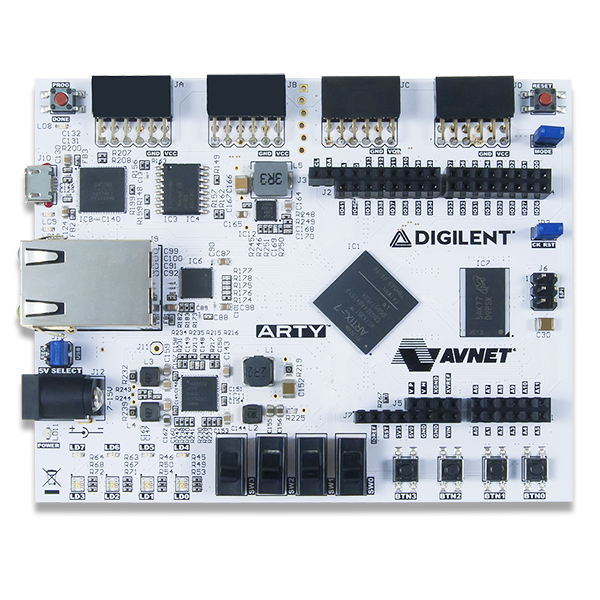

Arty A7 - Artix7 100T FPGA
The Arty A7, formerly known as the Arty, is a ready-to-use development platform designed around the Artix-7™ Field Programmable Gate Array (FPGA) from Xilinx. It was designed specifically for use as a MicroBlaze Soft Processing System. When used in this context, the Arty A7 becomes the most flexible processing platform you could hope to add to your collection, capable of adapting to whatever your project requires. Unlike other Single Board Computers, the Arty A7 isn't bound to a single set of processing peripherals: One moment it's a communication powerhouse chock-full of UARTs, SPIs, IICs, and an Ethernet MAC, and the next it's a meticulous timekeeper with a dozen 32-bit timers.
Features
Xilinx Artix-7 FPGA
- 5,200 slices containing four 6-input LUTs and 8 flip-flops (15,850 slices)1)
- 1,800 Kbits of fast block RAM (4,860 Kbits)2)
- 5 clock management tiles (CMTs), each with a phase-locked loop and mixed-mode clock manager (6 CMTs)3)
- 90 DSP slices (240 DSP slices)4)
- Internal clock speeds exceeding 450MHz
- On-chip analog-to-digital converter (XADC)
- Programmable over JTAG and Quad-SPI Flash
System Features
- 256MB DDR3L with a 16-bit bus @ 333MHz
- 16MB Quad-SPI Flash
- USB-JTAG Programming circuitry
- Powered from USB or any 7V-15V source
System Connectivity
- 10/100 Mbps Ethernet
- USB-UART Bridge
Interaction and Sensory Devices
- 4 Switches
- 4 Buttons
- 1 Reset Button
- 4 LEDs
- 4 RGB LEDs
- Expansion Connectors
- 4 Pmod connectors
- Arduino/ChipKit Shield connector
